Vibrator hoses for rig piping systems

Vibrating hose for mud piping

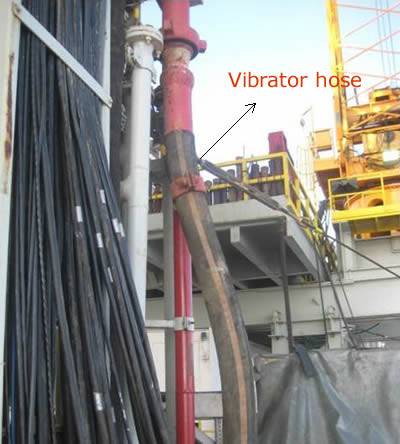

Vibrator hose is often used between two piping systems or between the mud-pump discharge outlet and the high-pressure mud piping system. It is designed to dampen noise pollution and vibration, or used to compensate misalignment or thermal expansion.

Vibrating hoses are available in a variety of end fittings from NPT threads to flange connections. Four or six spiral cable reinforcement support most of working pressure. It should be handled well to avoid any kicking or crushing. Stainless steel armor is an external protective armor for the vibrator hose. It protects the hose from mechanical damage, cuts, ozone and degradation from other elements.

Production description:

Tube: oil resistant for petroleum drilling fluids;
Reinforcement: four or six high tensile steel cable;
Cover: abrasion, ozone and oils resistance;
Operating temperature: -22°F to 200°F (-30°C to 93°C);
Operating pressure: 4000psi, 5000psi and 7500psi;
Hose inside diameter: 2", 2.5", 3", 3.5", 4", 5", 6";
Length: up to 110ft;
Safety factor: 2.5;
End fittings: API male nipples, threaded or butt-weld hammer unions, API flanges or as required;
Options: stainless steel armor available;
Certification: API 7K.

Flexible Vibrator Hose
I.D.	Working Pressure		Test Pressure		API Grade	Safety factor	O.D. Hose Body	MBR storage	MBR operation	Weight of hose body
in	psi	bar	psi	bar	API Grade	Safety factor	mm	m	m	kg/m
2	4000 5000	276 345	8000 10000	552 690	C D	2.5 2.5	97 102	0.6 0.6	0.7 0.7	11 12
2.5	4000 5000 7500	276 345 517	8000 10000 15000	552 690 1035	C D E	2.5 2.5 2.5	109 111 132	0.6 0.6 0.7	0.7 0.7 0.8	13 15 25
3	4000 5000 7500	276 345 517	8000 10000 15000	552 690 1035	C D E	2.5 2.5 2.5	124 126 148	0.6 0.7 1.0	0.7 0.8 1.1	16 18 34
3.5	4000 5000 7500	276 345 517	8000 10000 15000	552 690 1035	C D E	2.5 2.5 2.5	140 140 162	0.8 0.8 1.2	0.9 0.9 1.3	21 21 38
4	4000 5000 7500	276 345 517	8000 10000 15000	552 690 1035	C D E	2.5 2.5 2.5	166 166 174	1.0 1.0 1.2	1.2 1.2 1.4	33 33 41
5	5000 7500	345 517	10000 15000	690 1035	D E	2.5 2.5	197 213	1.4 1.4	1.5 1.5	47 67
6	5000 7500	345 517	7500 11250	690 776	- -	2.25 2.25	266 234	1.5 1.6	1.7 1.8	57 76

Note:

MBR – Minimum bend radius measured from hose centerline.
