Mud delivery hose with various pressure ratings

High-pressure mud hose also called rotary hose, vibrator hose or jumper hose, is used to convey drilling fluid from mud pump to the mud standpipe manifold on the drill floor. It is available in bore sizes from 2" to 6" and up to 120 ft. length. To meet different requirements on the market, API end fittings such NPT thread and flange and other specified fittings are supplied.

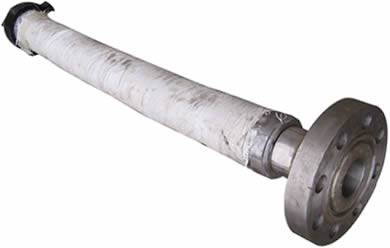

High pressure mud hose

Mud delivery hoses are lined with specially compounded synthetic rubber tube and cover. They have excellent resistance against abrasion and corrosion from oils.

Product description:

Tube: oil resistant for petroleum drilling fluids;
Cover: ozone, abrasion and weathers resistance;
Reinforcement: multiple spiral layers of high strength steel wire;
Hose inside diameter: 2", 2.5", 3", 3.5", 4", 5" and 6";
Maximum length: up to 120ft;
Safety factor: 2.5;
Operating temperature: -22°F to 200°F (-30°C to 93°C);
Operating pressure: up to 7500psi;
End fittings: API flanges, MPT threads, butt-welded unions or as required;
Certification: API 7K.

Mud Pump Hose
Inside Diameter	API Grade	Working Pressure		Test Pressure		Min. Burst Pressure		Safety factor	MBR operation
in (mm)	API Grade	psi	Mpa	psi	Mpa	psi	Mpa	Safety factor	m
2	A	1500	10.3	3000	20.7	3750	25.8	2.5	0.9
	B	2000	13.8	4000	27.6	5000	34.5	2.5	0.9
	C	4000	27.6	8000	55.2	10,000	69	2.5	0.9
	D	5000	34.5	10,000	69	12,500	86.3	2.5	0.9
2.5	A	1500	10.3	3000	20.7	3750	25.8	2.5	0.9
	B	2000	13.8	4000	27.6	5000	34.5	2.5	0.9
	C	4000	27.6	8000	55.2	10,000	69	2.5	0.9
	D	5000	34.5	10,000	69	12,500	86.3	2.5	0.9
	E	6000	51.7	15,000	103.4	18,750	129.3	2.5	1.2
3	C	4000	27.6	8000	55.2	10,000	69	2.5	1.2
	D	5000	34.5	10,000	69	12,500	86.3	2.5	1.2
	E	7500	51.7	15,000	103.4	18,750	129.3	2.5	1.2
3.5	C	4000	27.6	8000	55.2	10,000	69	2.5	1.4
	D	5000	34.5	10,000	69	12,500	86.3	2.5	1.4
	E	7500	51.7	15,000	103.4	18,750	129.3	2.5	1.4
4	C	4000	27.6	8000	55.2	10,000	69	2.5	1.4
	D	5000	34.5	10,000	69	12,500	86.3	2.5	1.4
	E	7500	51.7	15,000	103.4	18,750	129.3	2.5	1.5
5	C	4000	27.6	8000	55.2	10,000	69	2.5	1.5
	D	5000	34.5	10,000	69	12,500	86.3	2.5	1.5
	E	7500	51.7	15,000	103.4	18,750	129.3	2.5	1.8
6	D	5000	34.5	10,000	69	12,500	86.3	2.5	1.8
6	E	7500	51.7	15,000	103.4	18,750	129.3	2.5	1.8
