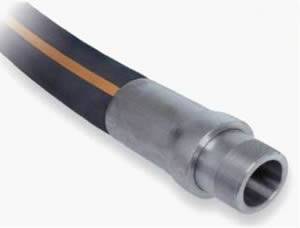

Kelly hose with diverse end fittings available

Kelly hose for drilling rig system

Kelly hose is used to connect the standpipe to the swivel. It allows the drill string to be raised and lowered while the drill fluid is pumped through it. Kelly line usually contains two layers of plated steel cables to reach 5000 psi operating pressure. Inside tube is made of special NBR to improve abrasion and corrosion capability. Rubber cover is compatible with the ozone, sunlight and oils for a long time. It is supplied with multiple end fittings – API flanges, threads, butt-welded union and other as specified.

Product description:

Tube: NBR, especially against abrasion and corrosion;
Cover: excellent resistance to ozone, petroleum and abrasion;
Reinforcement: Two layers of spiral steel wire cables;
Operating pressure: 5000psi;
Operating temperature: -22°F to 200°F (-30°C to 93°C);
Safety factor: 2.5;
Inside diameter: 2.5", 3", 3.5", 4" and 5";
Maximum Length: 110 feet;
Exceeds or meets API 7K/ ISO14693 specifications.

Flexible Kelly Hose
I.D.	Working Pressure		Test Pressure		API Grade	Safety factor	MBR storage	MBR operation
in	psi	bar	psi	bar	API Grade	Safety factor	m	m
2.5	5000	345	10000	690	D	2.5	0.8	0.9
3	5000	345	10000	690	D	2.5	1	1.2
3.5	5000	345	10000	690	D	2.5	1.2	1.4
4	5000	345	10000	690	D	2.5	1.2	1.4
5	5000	345	10000	690	D	2.5	1.3	1.5

Note:

MBR – minimum bend radius measured from the centerline of the hose.
