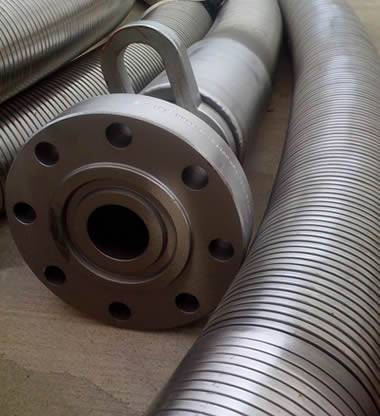

Choke Hose with API flanges
Choke line is used to connect below a BOP to transmit well fluid flow to the choke manifold during well control operations. It features stainless steel stripwound cover which isolates rubber cover from mechanical damage, cuts, ozone, oils and fire. Its high strength steel cable supplies high grate pressure up to 15,000 psi. High performance choke line is cost-effective when considering downtime, injuries and other lost caused by low price chock/kill hoses.
Product description:
| Hose Inside Diameter (inch) | Hose Outside Diameter (inch) | Working Pressure (psi) | Test Pressure (psi) | Minimum Burst (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| 2 1/2 | 4.15 | 5,000 | 10,000 | 15,000 | 36 |
| 3 | 4.61 | 5,000 | 10,000 | 15,000 | 48 |
| 3 1/2 | 5.25 | 5,000 | 10,000 | 15,000 | 54 |
| 4 | 6.4 | 5,000 | 10,000 | 15,000 | 60 |
| 2 1/2 | 5.14 | 10,000 | 15,000 | 22,500 | 48 |
| 3 | 5.64 | 10,000 | 15,000 | 22,500 | 48 |
| 3 1/2 | 6.05 | 10,000 | 15,000 | 22,500 | 54 |
| 2 1/2 | 5.66 | 15,000 | 22,500 | 33,750 | 60 |
| 3 | 6.16 | 15,000 | 22,500 | 33,750 | 60 |
