Kill hose connects the mud pumps to a connection below a BOP which allows fluid to be pumped into the well or annulus with the BOP closed during well control operations. Inside diameter ranges from 2 1/2inch to 4inch with lengths up to 110 feet (50 meter). Four high-tensile wire cable spirals are the most important load-bearing elements. The maximum operating pressures for different items are 5000psi, 10,000 psi and 15,000 psi. Kill hoses should be stored in a correct way to aviod kink or other problems which will shorten hose's service life.

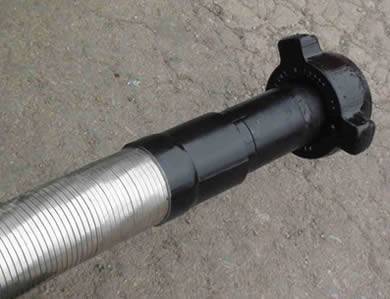

Kill Hose
Meets or exceeds related specifications of API 16C.
Stainless steel stripwound armor is designed to protect the hose from all external mechanical damage, harsh environments and fire resistance.
Product description:
| Hose Inside Diameter (inch) | Hose Outside Diameter (inch) | Working Pressure (psi) | Test Pressure (psi) | Minimum Burst (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| 2 1/2 | 4.15 | 5,000 | 10,000 | 15,000 | 36 |
| 3 | 4.61 | 5,000 | 10,000 | 15,000 | 48 |
| 3 1/2 | 5.25 | 5,000 | 10,000 | 15,000 | 54 |
| 4 | 6.4 | 5,000 | 10,000 | 15,000 | 60 |
| 2 1/2 | 5.14 | 10,000 | 15,000 | 22,500 | 48 |
| 3 | 5.64 | 10,000 | 15,000 | 22,500 | 48 |
| 3 1/2 | 6.05 | 10,000 | 15,000 | 22,500 | 54 |
| 2 1/2 | 5.66 | 15,000 | 22,500 | 33,750 | 60 |
| 3 | 6.16 | 15,000 | 22,500 | 33,750 | 60 |
Note: Minimum bend radius measured from the centerline of the hose.
