High pressure decoking hose

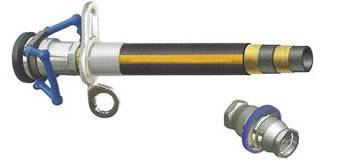

Decoking hose assembly

Coke is an important by-product in oil refining. It is often stored in silo until it can be loaded into railroad cars. The coke hardens after being placed in silos. Decoking hose attached to a drill stem is specially designed to unload coke from the silo using warm & high-pressure water. It is manufactured according to API 7K specifications. Operation temperature is -4ºF to +180ºF (-20ºC to +82ºC).

Flanges are butt-welded to built-in steel couplings which are permanently bonded to the hose. Swivel flange allows for easier installation of the hose without disengaging the flange bolting.

Construction:

Tube: black Type C3 Nitrile synthetic rubber. Specially compounded for rugged conditions, handling abrasion and oil corrosion.
Reinforcement: multiple plies of polyester cord over tube; high tensile steel cables with one layer of adhesion fabric placed between cable layers, and multiple layers of reinforcement under cover.
Cover: specially compounded cover for excellent resistance to abrasion, corrosion, cutting, mechanical damage, weather, oil and gouging.
Couplings: API standard flanges or ANSI RTJ flanges.
Fittings: flanges.
Optional: accessories such as safety clamps and chains, hose lift eye and collar clamp and stainless steel armor are available on request.
Note: Field welding of fittings to couplings is not recommended for safety consideration.

Decoking Hose Specification
I.D.	O.D.	API Grade	W.P. (psi)	T.P. (psi)	B.P. (psi)	Min. Bend Radius (in.)	Max. Hose Length (ft.)
3	4.61	D	5,000	10,000	12,500	48	90
3	5.66	E	7,500	15,000	18,750	48	90
3 1/2	5.25	D	5,000	10,000	12,500	54	90
3 1/2	6.04	E	7,500	15,000	18,750	54	90
4	5.61	D	5,000	10,000	12,500	54	90
4	6.48	E	7,500	15,000	18,750	60	90
